FM-E3250D, FM-E3250DG, FM-E3250DN 32” 4K Medical Display

New technologies are designed into this model that will take surgical visualization to the next level. The use of mini-LED backlighting with local dimming zones improves brightness and contrast. HDR support will intelligently display dark areas and light areas with incredible detail.

Additionally, key features of this monitor series include UHD (3,840 x 2,160 pixels) resolution, multi-window mode support (PIP, PBP, quad), and firmware updates through the internet.

    • Mini LED local dimming (2,304 dimming zones).
    • HDR (PQ, HLG) support, dynamic contrast ratio up to 1,000,000 : 1.
    • Default 12G-SDI clone out.
    • Options for 12G-SDI and VoIP via 10G SPF (fiber and copper).

Item Description
Panel 32 inch mini-LED
Resolution 3840 x 2160 pixels
Active Area 708.48 (H)mm x 398.52 (V)mm
Pixel Pitch (mm) 0.1845 x 0.1845
Dimming Zones 2304 (high pixel efficiency)
Number of Colors 1.07 Billion, 10 bit (True 10) support
Brightness (typical) 1000 cd/m2 white luminance (full screen)
1800 cd/m2 white luminance (10% center patch)
Color Gamut BT.709 (100%) and BT.2020 (DCI-P3 98%)
Contrast Ratio (typical) 1800 : 1 (1,000,000 : 1 dynamic)
Surface Treatment Anti-glare
Viewing Angle (CR>10) R/L 178°, U/D 178°
Input Signal FM-E3250D - HDMI (HDCP 2.3) x2, DP (DP 1.4) x1
FM-E3250DG - HDMI (HDCP 2.3) x2, DP (DP 1.4) x1, SDI (12G) x2
FM-E3250DN - HDMI (HDCP 2.3) x2, DP (DP 1.4) x1, SDI (12G) x1, 10G SFP+ (Rx) x1
Output Signal FM-E3250D - SDI (12G) clone out x1
FM-E3250DG - SDI (12G) clone out x1, SDI (12G) loop through x2
FM-E3250DN - SDI (12G) clone out x1, SDI (12G) loop through x1, 10G SFP+ (Tx) x1
DC Power Out 12V/2A x 1, 5V/2A x 1
External Control RS-232, Ethernet
GPIO Port Source change, Single/PBP/PIP select, Recording indicator
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/12.5A)
Power Consumption 150W max
Accessories Included User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, BNC cable, Screw BH M4 x 14

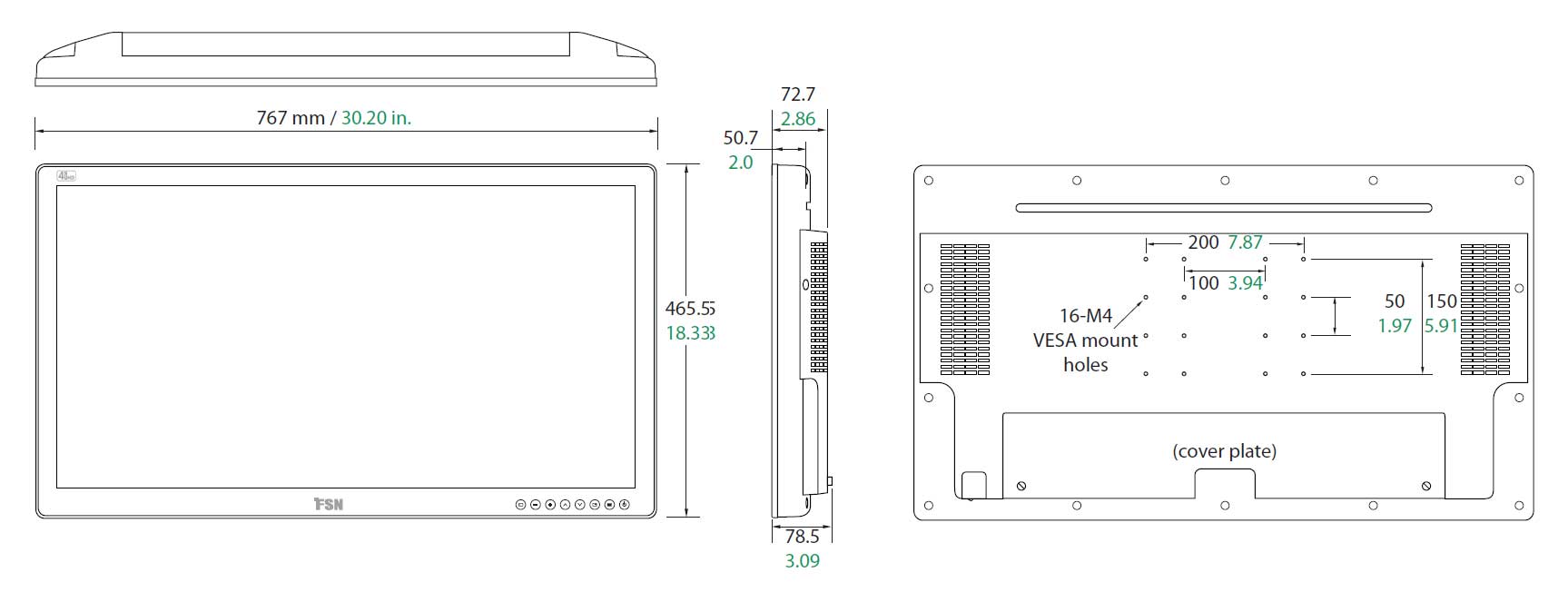

Unit Dimension 767(W) x 465.5(H) x 72.7(D) mm
30.20(W) x 18.33(H) x 2.86(D) inch
Package Dimension 905(W) x 744(H) x 230(D) mm
35.6(W) x 29.3(H) x 9(D) inch
IP Rating (estimated) IP31 - overall
Weight - FM-E3250D 11.8 kg, 26.01 lbs. (monitor with cover)
17.8 kg, 39.24 lbs. (shipping package)
Weight - FM-E3250DG 12 kg, 26.46 lbs. (monitor with cover)
18 kg, 39.68 lbs. (shipping package)
Weight - FM-E3250DN 12 kg, 26.46 lbs. (monitor with cover)
18 kg, 39.68 lbs. (shipping package)
Certifications ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
FM-E3250D, DG, DN data sheet Download
