- 3G/12G-SDI
- DisplayPort 1.2
- HDMI 2.0
- DICOM Store (still and video) & DICOM Worklist
- Patient search & query
- Medical printer compatible
- Audio input/output
- Camera head/foot pedal triggers
Item | Description |
---|---|
Resolution | 3840 x 2160P 60Hz |

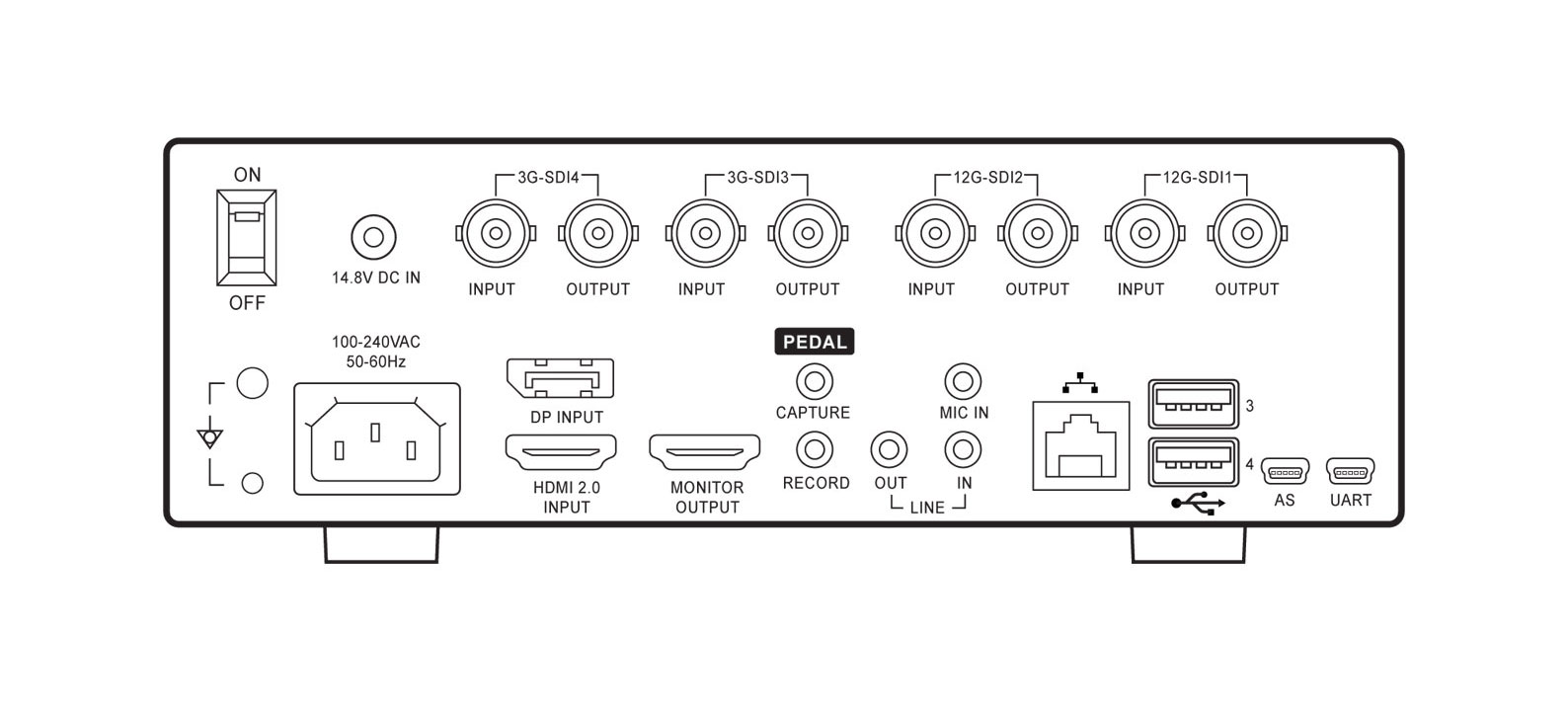

Input Signal | HDMI 2.0 DisplayPort 1.4 3G-SDI 12G-SDI Audio: 3.5mm Mic in, Line in |
Touch (Optional) | Front LCD screen |
Output Signal | Monitor out HDMI 2.0 Loop-through IPS740DS: 3G-SDI IPS740DG: 12G-SDI Audio: 3.5mm Stereo line out |
Power Supply | AC 100-240V / 50-60Hz, 0.6A (max) |
Unit Dimension | 260mm (10.2 in.) wide x 95mm (3.7 in.) high x 330mm (13 in.) deep |
Recordable Media | 4TB Internal hard drive External USB storage |
3D capability | 4K line alternative (SBSH conversion) 4K side-by-side half |
DICOM mode | DICOM Store (Image) Modality Worklist MPPS Appointment Booking (HL7) |
![Image](https://fsnmed.com/wp-content/uploads/2023/01/IPS740DS-DG-web-eng.jpg)
