- Up to 4096 x 2160 maximum resolution
- Output layout options: single, dual (9 types), quad (9 types)
- Save and recall up to 10 user preset configurations
- 4 channel concurrent network streaming
- Image control: contrast, brightness, color, zoom, pan
- Built-in 7 inch diagonal touch screen
- Options for interface control via touchscreen or tablet

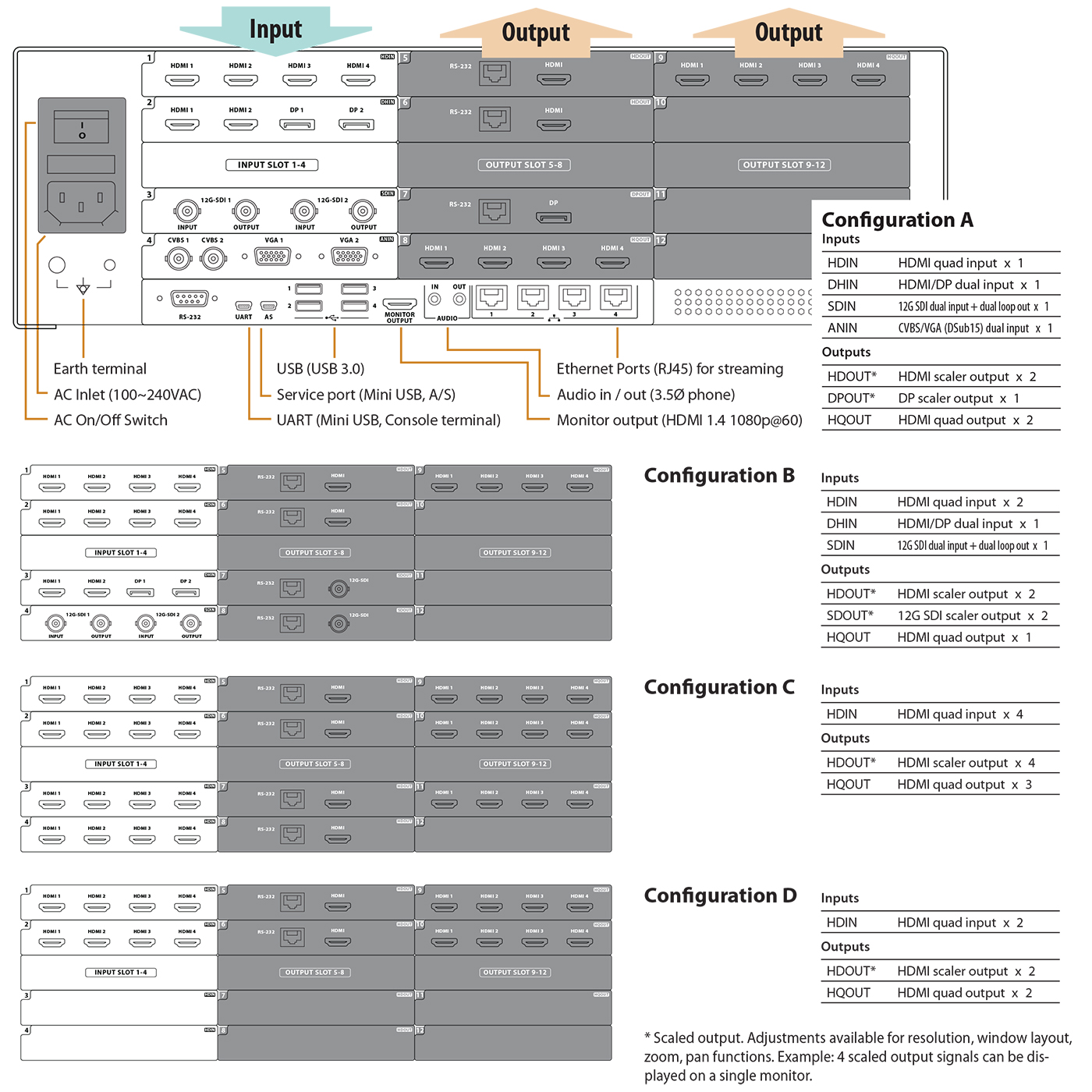

Item | Description |
---|---|
Inputs, 4 cards | HDMI x 4, card name HDIN HDMI x 2 + DP x 2, card name DHIN HDMI x 2 + DP x 2, card name DHIN 12G-SDI x 2 + Thru Out x 2, card name SDIN |
Outputs, 8 cards | HDMI + UART, card name HDOUT * HDMI + UART, card name HDOUT * HDMI + UART, card name HDOUT * HDMI + UART, card name HDOUT * HDMI x 4, card name HQOUT HDMI x 4, card name HQOUT DP + UART, card name DPOUT * SDI + UART, card name SDOUT * * Scaled output. Adjustments available for resolution, window layout, zoom, pan functions. Example: 4 scaled output signals can be displayed on a single monitor. |
Serial Communication | RS-232C |
Network | Ethernet TCP/IP |
On Screen Display | English. Built-in 7 inch diagonal touch screen, or external screen via web, tablet or PC. |
Power | AC 100~240V / 50~60Hz , 2A-1A |
Unit Dimension | 437(W) x 140(H) x 423(D) mm 17.21(W) x 5.51(H) x 16.65(D) inch |
